POTASSIUM SULAFTE PLANT PROJECT (MANNHEIM FURNACE TECHNOLOGY)



POTASSIUM SULAFTE PLANT PROJECT (MANNHEIM FURNACE TECHNOLOGY)

Our Mannheim Furnace Technology Advantage

• 1.Individual Line Production Capacity: 11,000-11,500 ton SOP
• 2.Natural Gas consumption is Only 50-55 m3 based on per tonne Potassium sulfate(SOP)
• 3.Guarantee THREE year Maintenance
• 4.Outer temperature of furnace will be less than 10 celcius degree than ambient temperature.
• 5.Main Equipment are fabricated in our own workshop, quality can be guaranteed.
• 6.Can provide After-sale Service in time

Mannheim Reaction Formula

• The overall reaction formula is as below.
• Mannheim: 2 KCl + H 2 SO 4 → 2 HCl +K 2 SO 4
• Real reactions are in two stages.
• KCl + H 2 SO 4 → KHSO 4 + HCl (I)
• KCl + KHSO 4 → K 2 SO 4 + HCl (II)
• External heating is required because the overall reaction is endothermic.

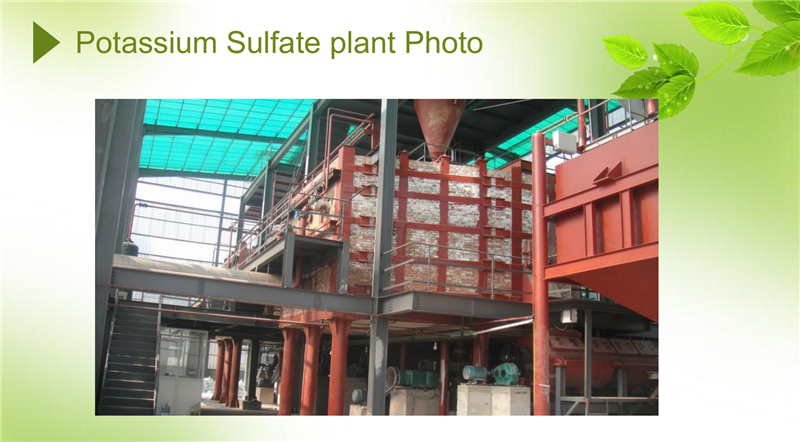

• At temperature 520 - 560 °C the Potassium chloride reacts with sulfuric acid in a sealing and negligible-negative pressure chamber, synthesizing Raw Potassium Sulfate (SOP) and HCL gas, helping by internal distributor and blender.
